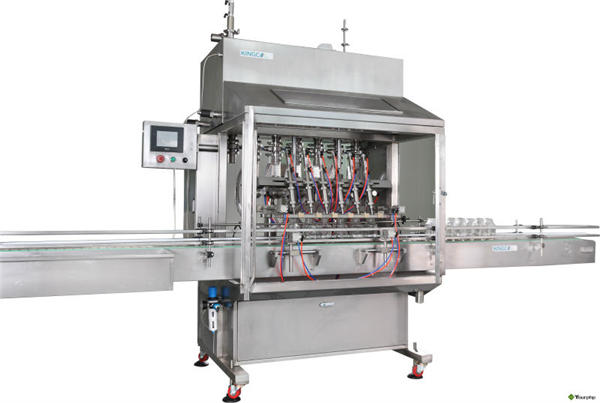

Màquina de farciment de salsa de soja lleugera sense sucre

Principals característiques

Aquesta màquina de llençament de temps de gravetat especialment dissenyada per a productes espumosos, com ara: netejador de vidre, sabó líquid, etc.

(1) Control de PLC, control de pantalla tàctil amable

(2) Els components elèctrics i pneumàtics de marca famosos utilitzats per garantir la qualitat de les màquines i un llarg servei de vida.

(3) La funció de busseig per degoteig pot ser especial per a producte espumós.

(4) Totes les peces mullades estan fabricades en SS316.

(5) No només es poden ajustar els capçals de farciment sencers, sinó que cada cap de farcit es pot ajustar bé respectivament.

(6) El recompte d’entrada d’ampolles, l’ompliment quantitatiu, el recompte de la sortida d’ampolles i els moviments serios es poden fer automàticament.

(7) Estructura senzilla, fàcil funcionament, baix soroll, funcionament fiable, ompliment precís.

suitable for liquid packing : apple vinegar ,soy sauce ,vinegar ,fish sauce soy sauce and so on ...

per què convé


1 :for different bottle shapes: round ,flat and so on for different kinds shapes of bottles ,they can share on one filling machine ,no need to change spare parts ...

2: no dropping , the filling machine we have the copy right to make sure there is no dropping after filling ( if any dropping ,soy sauce will make the bottles dirty )

3: Anti corrosive ,soy sauce is corrosive ,even stainless steel after long time use will be corrosive ,the material we use ,all the contact part SS 316L ,make sure machines are working good

4: CIP round liquid tank , as for food ,the standard is higher than others ,can not with angle ,and we have the tank is meet the standard requirement of CIP

5: foaming , we have the device which not only diving to avoide the foaming but also have some other special ways to make sure to decrease the foaming.

filling range : 50ml -1000ml        1L -5L      capacity : 100ml 5000BPH       500ml 4000BPH      1000ml 35000BPH

Descripció del producte


is a high-tech filling equipment integrating on the PLC microcomputer programmable control, and photo electricity transduction pneumatic action. The machine is especially suitable for foodstuff. For example: white spirit, soy sauce, vinegar, seasoning, vegetable oil, syrup, mineral water, edible liquid as well as chemical liquid. It has accurate filling measurement; there is not bubble and drop. It suits for the filling of all kinds of bottle (including irregular bottle) ranging from 25 to 1000 ml.

for soy sauce and vinegar such kind of foaming liquid filling ,without dropping ,with accurate filling level

with diving function to decrease foaming during filling

with two kinds of filling speed ,fast filling and slow filling

1,Advanced design

1.1 The machine suits for the filling of different sizes of vessel may change the filling sizes within a few minutes.

1.2 Short filling circle, high production capacity.

1.3 Changing filling circle, high production capacity.

1.4 User may choose the filling volume and decide the filling heads per own production capacity.

1.5 The touching operation color screen, can display the production state, operation procedures and filling ways, tableau objective, operation simple and maintenance convenient.

1.6 Each filling-head is equipped with a bottle-mouth-clamping device, ensuring the injecting material correct aiming at.

2. Unique filling way

2.1 Selecting straight bottle-feeding and bottle-discharging in group, make the filling function extend, the vessels of all kinds of shape are got effective filling.

2.2 Using the world advanced gas filling valve, ensure the filling process non-drop and non-drool.

2.3 Stronger PLC software support, may realize the ideal filling operation.

2.4 Friendly person-machine interface, all operations are completed on the touching color screen.

3. Accurate measurement control

3.1 Using fixed sprue parameter to control the filling time realizing the filling of the different measurements.

3.2 The precision time of the pneumatic valve filling may set to 0.01 second, can make the measurement precision control within ±1%, to decrease unnecessary material loss and enhance the economic efficiency.

3.3 Each filling-head’s measurement may be individually adjusted to realize the same filling measurement.

3.4 The machine set such function: having counting program of bottle-feeding, doesn’t fill as there is not bottle or the counting doesn’t attain a predetermined position, can start filling only when the counter records that the bottle number is same as the setting filling number.

3.5 More or less of the filling volume, may initially adjust to the needed filling volume, then micro adjust, can get the ideal filling measurement precision.

Paràmetres tecnològics


1Velocitat4500-3000 bottles/h
2Gamma d’ompliment100-1000ml
3Precisió de la mesura± 1%
4Potència de treball220VAC
5Pressió de l'aire6-7kg/cm²
6Consum d’aire0.5m³/minute
7Potència0,8kw
8La velocitat de potència dels altres dispositius5.5kw(aircompressor)
9Pes net650kg
10Taulell de la contrataula2200×870×1900mm

configuració


NO.ARTICLEPROVEIERDORAMarca
1Pantalla tàctilTaiwanWEINVEIW
2PLCJapóMitsubishi
3Sensor fotogràfic per ampollesJapóOPTEX
4vàlvula de solenoideTaiwanSHAKO
5Botó de nivellUSACONTROLS DE JOHNSON
6Vàlvula de seient d'angleArticulacióBURKERT
7Other divicesTaiwanAirtac
8Botó d'encendreFrançaSchneider
9BotóFrançaSchneider
10convertidor de freqüènciaFrançaSchneider
11bottle- transport motorXinaHuangyan
12Reductor de velocitatXinaJiao xing
13ReléJapóOmron



Detalls ràpids


Tipus: Màquina de farciment
Estat: Nou
Aplicació: Indumentària, begudes, productes químics, productes bàsics, aliments, maquinària i ferreteria, metges
Tipus d'embalatge: Barril, ampolles, llaunes
Material d'embalatge: vidre, metall, plàstic
Grau Automàtic: Automàtic
Tipus de conducció: Pneumàtic
Voltatge: 220V 50HZ
Potència: 1,8kw
Place of Origin: Shangahi, China (Mainland)
Nom de marca: NPACK
Dimension(L*W*H): 2200*870*2300mm
Pes: 650kg
Certification: ISO CE CCVO SONCAP
Servei postvenda subministrat: enginyers disponibles per a la maquinària de servei a l'estranger
body material: SS 304
contact part: SS 316
