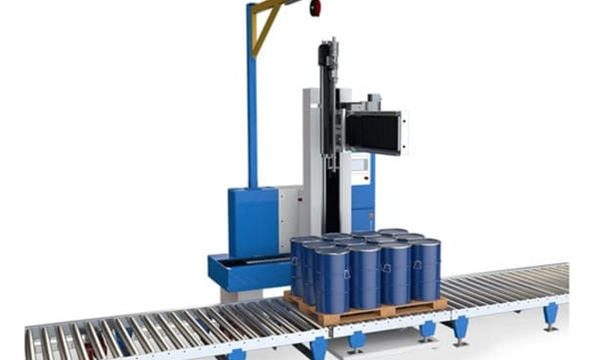

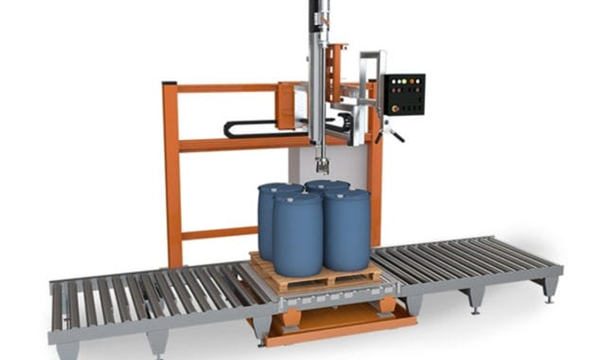

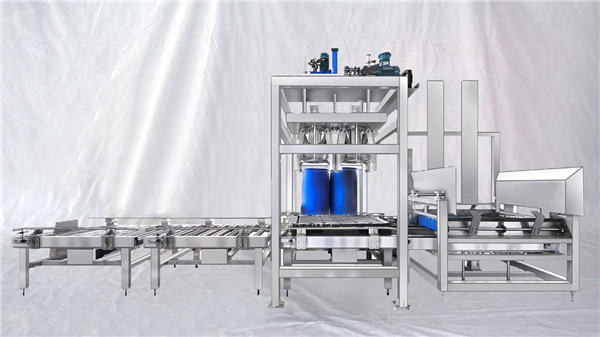

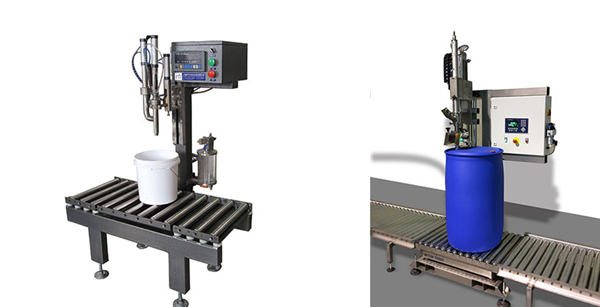

Drum Filling Machine

Description of motor bicycle oil filling machine: Working process: @The operator places the drum on the filler @The operator aligns the nozzle to the drum @The operator presses the button of " filling orientation" at first, then presses the button of "start filling", filling nozzles lowing down,start filling automatically @When it comes to the weight set, automatically stops filling and nozzle out of the drum @The operator push out the drum Features : @Machine adopts three steps filling,fast filling,slow dow filling,then precision filling. @Material contacted parts:sus316 and with sus304 for other parts @Rolling conveyor material:stainless steel @Vacuum withdrawn system,ensure the…

Features 1) The drum filling machine is widely used for filling medium and small capacity liquid with various viscosities. It is the bottom-filling type 2) Automatically subtracting weight of container 3) Arbitrarily sets filled liquid weight in design of weighing scope 4) Automatically controls filling at fast or slow speed to prevent over washing 5) Displays statistic data, such as accumulate filling frequency and total filling weight 6) Possesses printer output interface 7) Adopts USA Medl-Toredo weight instruments and sensors Main technical parameters 1) Filling weight: 50 - 400kg 2) Production capacity: 40 - 60 barrels/hour (180kg/barrel) 3) Weighing error:…

FEATURES 1. Filling Method: Filling from top. (can be product from bottom , control bubble ) 2. Control Mode: Manual setting filling way, micro switch control. 3. Conveying Mode: Roller Type Conveying without engine. 4. Own digital displaying filling quantity function, can finish multi-kinds filling quantity setting. 5. Automatic peeled, based on net weight filling function. 6. Own vacuum withdrawing function to avoid anti-drip. 7. With manual & automatic micro switch control system function. 8. Dual speed control function to prevent splashing. 9. With emergent treatment to avoid misuse and protect power-off. Range 20-200kg Filling Speed 40-60drum/hour Filling Accuracy ±0.1%…

Drum Liquid Filling Machine Suitable for quantitative filling of chemical industry, food, medical industry The system uses PLC, touch screen, safe and reliable Filling nozzle and pipe use quick coupling, convenient for removing and washing Automatic 2-shift filling with high accuracy The filling nozzle automatically lifts when it is not inserted into a barrel The nozzle automatically lifts when reaching the target filling amount Gross or net filling mode is available Be able to set and store 30 groups of formula for use Free to set target filling amount in order to be convenient for different packing Filling with one…
