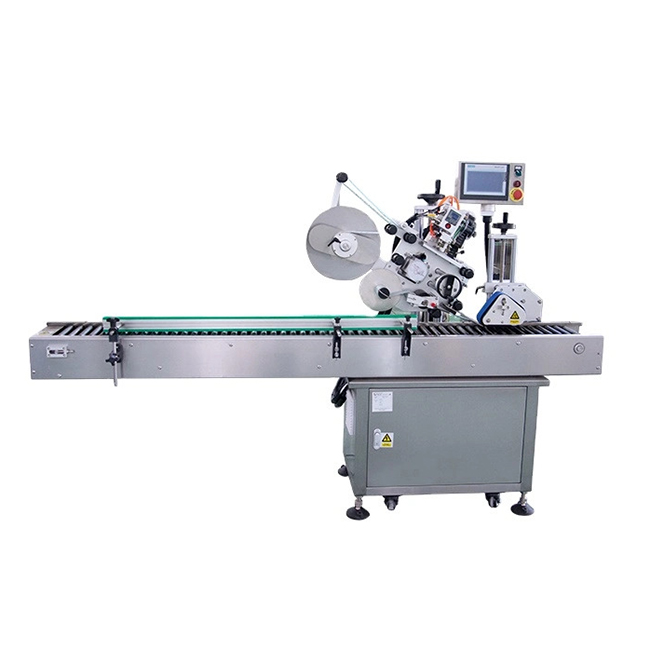

Màquina d'etiquetatge de tubs horitzontals

màquina etiquetadora d’embolcall horitzontal al voltant del tub

---

1. Apply to food, pharmaceutic, daily chemical, stationery, plastic industries etc.

2. Mainly used to automatically stick adhesive label on cylinder or small conical products which is unable to be carried vertically, such as tube, cylinder bottle, water injection, conical tube etc. High labeling precision, stable work ability, neat, no wrinkle, no bubble.

3. Suit for single or similar diameter products, orbit unadjustable and Can be matched with bottle feeder, ribbon printer, date printer, etc

Paràmetre tècnic

---

Mida de l'etiquetatge	(L) més 10mm (W) 110-100mm	Diàmetre interior enrotllat	76mm
Mida del producte	(D) 10-16mm16-26mm 26-36mm (H) menys de 100mm	Diàmetre rodant de la part exterior	350mm
Etiquetatge de precisió	+ -1mm	Font d'alimentació	AC220V 50Hz 3kW
Velocitat d’etiquetatge	40-150 (peces / min) (relacionar-se amb el material i la mida de l’etiqueta)	Mida de la màquina	(L) 2000 * (W) 1700 * (H) 1500mm

Detalls ràpids

---

Tipus: Etiquetadora
Estat: Nou
Aplicació: Begudes, productes químics, productes bàsics, aliments, maquinària i ferreteria, sanitat
Tipus d'embalatge: Ampolles
Material d'embalatge: paper, plàstic
Grau Automàtic: Automàtic
Tipus de conducció: elèctric i aeri
Tensió: 110V / 220V
Potència: 1,5KW
Lloc de procedència: Xangai, Xina (continental)
Nom de marca: NPACK
Dimensió (L * W * H): 2100 * 700 * 1000mm
Pes: 300kg
Certificació: GMP
Servei postvenda subministrat: enginyers disponibles per a la maquinària de servei a l'estranger
Nom del producte: màquina etiquetadora d'embolcall horitzontal
Funció: Etiquetatge de tub
Material: Acer inoxidable S304
Velocitat d’etiquetatge: 60-150 ampolles / min
Ús: etiquetatge horitzontal
Avantatge: Equip de suport professional

A horizontal wrap around tube labeling machine is a machine that is designed to wrap labels around cylindrical tubes with high efficiency and accuracy. This type of machine is ideal for labeling a wide range of products, including cosmetic tubes, toothpaste tubes, food containers, and other cylindrical products.

The machine is designed with a horizontal orientation, which enables it to handle large volumes of products in a compact and efficient manner. The labeling process starts with the product being fed into the machine, which then positions it in the correct position for labeling. The label is then applied to the product as it is rotating, ensuring a smooth and even application.

The machine is equipped with advanced features such as a touch screen control panel, which makes it easy to operate and adjust the settings. The control panel also provides real-time monitoring of the labeling process, enabling the operator to make any necessary adjustments to ensure consistent and accurate labeling.

The machine is also equipped with a high-speed labeling system, which can apply labels at speeds of up to 200 tubes per minute. This high speed capability ensures that the machine can keep up with the demands of a fast-paced production environment.

In addition, the machine is equipped with a built-in quality control system, which checks the accuracy of the labeling process and alerts the operator if any problems are detected. This ensures that the product is labeled with the correct information and meets all quality standards.

The horizontal wrap around tube labeling machine is also designed to be easy to maintain, with removable and replaceable components that can be quickly and easily replaced if needed. This helps to minimize downtime and reduce the cost of maintenance.

In conclusion, a horizontal wrap around tube labeling machine is a versatile and efficient labeling solution for a wide range of products. With its advanced features, high speed capabilities, and easy maintenance, it is an ideal choice for companies looking to improve the accuracy and efficiency of their labeling process.
