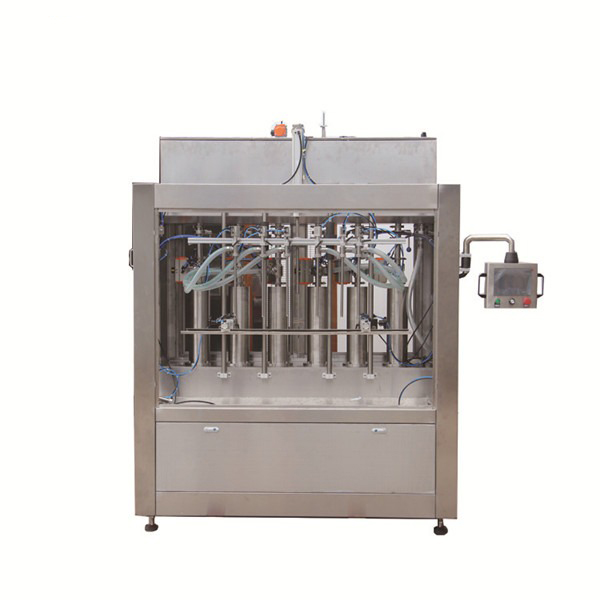

Rentadora de rentat de líquid

A dishwashing liquid filling machine is a type of automated equipment that is designed to fill bottles or containers with dishwashing liquid. It typically uses a series of pumps, sensors, and nozzles to accurately measure and dispense the correct amount of dishwashing liquid into each container. These machines can be used in industrial or commercial settings to increase production efficiency and accuracy.

Especificacions

---

màquina d'omplir líquid per rentar plats
1. With CE Certificate,Meet the GMP
2. Material:304or316Stainless Steel
3. Pay:T/T,L/C

Descripció

---

CE de la UE
ISO9001
Compliu els requisits de GMP
longlife of service, low mainteinance rate

Funció principal

---

La màquina és una màquina avançada d’ompliment d’alta precisió que pot completar el procés de comptatge, ompliment i tapatge d’ampolles automàticament.

Característiques

1. Estructura compacta, de bon aspecte, fàcil d’operar i altament automatitzada.

2. Els components de contacte amb el material són d’acer inoxidable, fàcils de netejar.

3. El volum d'ompliment es controla amb vàlvules de film per garantir la precisió.

4. Les vàlvules d'ompliment d'alta velocitat i de gran precisió no asseguren fuites.

5. Està equipat amb un sistema d’alimentació de taps d’alta eficàcia.

Opció d’idioma

Monitor language: English, Spanish, Arabic, Portuguese, Russian, Italian, French, Korean.

Característiques principals:

---

1. Linear type piston filling machine special designed for sticky liquid,such as detergent, shampoo, lotion,lubricant oil,edible oil, etc. international advanced technology, already approved by well-known companies such as Bayer. High filling accuracy, simple structure, stable working, widely application. Counting of bottles inlet, qualitative filling, bottles outlet are done automatically.

2. Not only the whole 13 filling nozzles dosage can be rough adjusted, but also each single filling nozzles dosage can finely adjusted.

3. Es poden memoritzar molts paràmetres, útils per a diverses especificacions canviats, tota la dosi d'ompliment es pot ajustar amb la pantalla tàctil.

4. Liquid control for normal working liquid level control, sound and light alarm device, guarantee the liquid level at normal condition; also can achieved for inlet valve/pump control.

5.  Material outlet joints all adopts quick-assembling type (clamp type), easily for clean. Sealing gaskets adopts fluorine rubber O-ring; sanitary connecting pipes.

6.  With protection case, drip gutter, main materials are made of SS304, wetted parts are made of SS316L.

Paràmetre tècnic principal

---

Article	Nom	Paràmetre tècnic
01	Dimensió de la màquina (L * W * H)	2200mm * 1400mm * 2800mm
02	Pes de la màquina	Uns 1400Kg
03	Diàmetre interior d’obertura del contenidor	≥φ35mm
04	Contenidor adequat	1Liter .2Liter
05	Alçada del contenidor	80-350mm
06	Font d'alimentació	CA 380V; 50HZ
07	Potència	5Kw
08	Precisió d'ompliment	≤ ± 1%
09	Font d’aire	Aire comprimit estable i net de 0,6Mpa
11	Nombre de broquets d’ompliment	13
12	Altura del transportador	900mm ± 50mm
13	capacitat	≤3200bots / hora (prendre aigua com a prova)
14	Ampolla en direcció d'alimentació	D’esquerra a dreta

Detalls ràpids

---

Tipus: Màquina de farciment
Estat: Nou
Aplicació: química
Tipus d'embalatge: Ampolles
Material d'embalatge: Fusta
Grau Automàtic: Automàtic
Tipus de conducció: Pneumàtic
Tensió: 220v
Potència: 3KW
Lloc d’origen: Xangai. Xina (continental)
Nom de marca: NPACK
Dimensió (L * W * H): 2200mm * 1400mm * 2800mm
Pes: 1400
Certificació: CE
Servei postvenda subministrat: enginyers disponibles per a la maquinària de servei a l'estranger
material: SS304
PLC: Panasonic
Pantalla tàctil: Panasonic

Dishwashing liquid filling machines are specifically designed to package dishwashing liquids into various types of containers. These machines are essential for businesses in the cleaning industry who want to streamline their packaging process and increase their productivity. There are several types of dishwashing liquid filling machines available in the market, each with its unique features and benefits.

One of the most popular types of dishwashing liquid filling machines is the volumetric filler. This machine operates on the principle of displacement and uses a piston to fill the containers with the precise amount of liquid required. This type of machine is highly accurate and is suitable for packaging liquids with a constant viscosity.

Another type of dishwashing liquid filling machine is the gravity filler. This machine works on the principle of gravity and uses a funnel to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the funnel. This type of machine is ideal for packaging low viscosity liquids and is very cost-effective.

The third type of dishwashing liquid filling machine is the overflow filler. This machine works on the principle of overflow and uses a hopper to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the hopper. This type of machine is ideal for packaging high viscosity liquids and can handle liquids with large particles.

When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require. It is also important to consider the ease of maintenance and the reliability of the machine.

In conclusion, a dishwashing liquid filling machine is a crucial investment for businesses in the cleaning industry. With the right machine, businesses can increase their productivity, improve the quality of their packaging, and save time and money. When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require.
