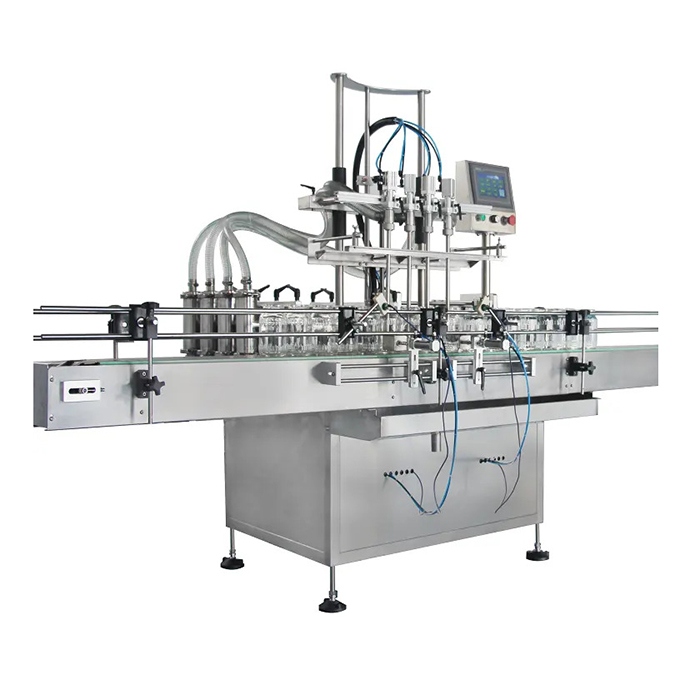

4 màquines automàtiques per omplir ampolles de líquid

Inici / Màquines de farciment / Màquina d'ompliment d'ampolles / 4 màquines automàtiques per omplir ampolles de líquid

4 màquines automàtiques per omplir ampolles de líquid

Aplicacions:


4 Heads Automatic Liquid Bottle Filling Machine is suitable to the material: coating agent, suspension agent, edible oil, lubricating oil and water agent etc.

El principi i la característica:


The machine is a ram filler, it using the PLC programmable control, equipping with tonching screen person-machine interface system, realizing automatic filling, automatic capping. it is suit for the different bottles and caps, only make some adjustment .

Característica:

1. SS316L piston pump fills high precision suitable for oral liquid and light liquid with viscosity.

2. This machine is compact design, streamline bottle conveying, more stable.

3. No bottle no fill function.

4. Auto frequency conversion adjusting speed.

5. Auto display and count.

6. Rolling sealer uses single flexible knife with 12 rolling heads, one machine can auto entry, filling, adding cap, and sealing smoothly.

7. One machine can auto entry, filling adding capper, and sealing.

8. The whole machine is designed according to the requirements of GMP.

Principals especificacions tècniques


Nombre de caps de farcit4 caps
Nombre de capgrossosCap únic
La gamma de farcit20 ~ 1000ml
La gamma de perfectes20-100ml \ 50-250ml \ 100-500ml \ 200ml-1000ml
L’elecció de la cobertaTapa anti-robatori, coberta de cargol, coberta d'alumini ROPP
Capacitat de producció2400 ~ 3000 (ampolles / hora)
Mesura de precisió≤ ± 1
La taxa d’elecció≥99
Potència220V 50 / 60Hz
Potència total≤1.2kw
Pressió de l'aire0,4 ~ 0,6MPa
Pes
800kg
Dimensions exteriors (mm)2000 × 1200 × 1600

Detalls ràpids


Tipus: Màquina de farciment
Estat: Nou
Aplicació: begudes, productes químics, mèdics
Tipus d'embalatge: Ampolles
Grau Automàtic: Automàtic
Tipus de conducció: Elèctric
Voltatge: 220V / 110V 50 / 60Hz
Potència: ≤1.2KW
Lloc de procedència: Xangai, Xina (continental)
Nom de marca: NPACK
Dimensió (L * W * H): 2000 * 1200 * 1600mm
Pes: 800kg
Certificació: GMP
Servei postvenda subministrat: enginyers disponibles per a la maquinària de servei a l'estranger
Nom del producte: Màquina d’ompliment d’ampolles de líquid
La gamma de farciment: 20 ~ 1000ml
La gamma de perfectes: 20-100ml \ 50-250ml \ 100-500ml \ 200ml-1000ml
Capacitat de producció: 2400 ~ 3000 (ampolles / hora)
Precisió de la mesura: ≤ ± 1
La taxa de requisits: ≥99
The choice of cover: Burglarproof cover, screw cover


A 4 heads automatic liquid bottle filling machine is a piece of equipment designed to fill bottles with liquids such as water, juice, oil, and other fluids. This machine works by accurately measuring and dispensing the required amount of liquid into the bottle through four filling heads that work simultaneously. The machine is fully automated, which makes the process faster, efficient, and less labor-intensive.

The 4 heads automatic liquid bottle filling machine is designed to handle a range of bottle sizes and shapes, making it versatile and ideal for use in a variety of industries. The machine can also fill different types of liquids, which makes it a suitable option for use in industries such as food and beverage, pharmaceuticals, and cosmetics.

The machine is easy to operate and has a user-friendly interface that allows for easy setup and programming of the filling parameters. The parameters can be customized to suit the specific needs of the product being filled, such as filling volumes and speeds.

The filling process is accurate and consistent, which helps to maintain the quality of the product being filled. The machine can also be integrated with a capping or labeling machine, which further streamlines the packaging process and increases efficiency.

In conclusion, a 4 heads automatic liquid bottle filling machine is an essential piece of equipment for any business that produces and bottles liquid products. It provides a fast, efficient, and accurate way of filling bottles with liquid products, which helps to increase productivity and reduce costs. The machine is customizable and can handle a range of bottle sizes and types, making it versatile and suitable for use in various industries.
